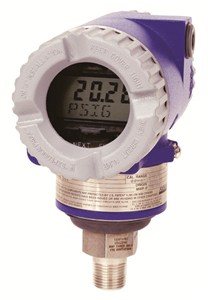

IAP10 Intelligent Absolute Pressure Transmitters

The I/A Series Electronic Pressure Transmitters are a complete family of d/p Cell®, gauge, absolute, multirange, multivariable, and premium performance transmitters, as well as transmitters with remote or direct connect pressure seals, all using field-proven silicon strain gauge sensors and common topworks.

The IAP10 intelligent, two-wire transmitter provides precise, reliable, measurement of absolute pressure and transmit a 4 to 20 mA output signal with a superimposed HART® digital signal for remote configuration and monitoring.

Remote seals are required for operation and mounting. See Remote Seals for Pressure Transmitters



Key Benefits

  • Simple, elegant sensor packaging uses very few parts to achieve exceptionally high reliability
  • Liquid Crystal Display (LCD) digital indicator with on-board pushbutton configuration and calibration.
  • NEMA 4X and IEC IP66 durable epoxy-coated aluminum, or 316 ss housings.
  • Co-Ni-Cr, 316L ss, and Nickel alloy (equivalent to Hastelloy®(1)) sensor materials for all transmitters.
  • Can be provided with numerous configurations of direct connect or remote mount seals.
  • Integral process connections for sanitary, and pulp/paper installations.
  • Choice of Mounting Styles: IAP10 for compact light weight and direct-to-process mounting (bracket optionally available
  • Rugged & Dependable: Field-proven silicon strain gauge technology and corrosion-resistant epoxy finish
  • Superior Performance: Accuracy to ±0.05% of span and Ambient temperature effects to ±(0.03% URL+0.06%) span per 28°C (50°F
  • Best in the industry – 5 year warranty
