875CR Intelligent Analyzer for Contacting Conductivity and Resistivity Measurements
This Foxboro 875CR is a microprocessor-based, line-powered intelligent analyzer, when used with Foxboro 871CR or 871CC sensors, provides high accuracy measurement for either contacting conductivity or resistivity. Functions include measurement display, dual analog outputs, dual relay contacts, and an RS-232 serial port for remote configuration. A human interface guides the user through intuitive, menu-driven configuration, calibration, status, and troubleshooting procedures.
Key Benefits
- Dual sensor input
- High accuracy and wide rangeability
- USP23/24 compliant for pharmaceutical applications
- Single unit for either conductivity or resistivity
- Compatible with Foxboro 871CR and 871CC sensors
- Application switching and storage of up to 3 sets of application configurations
- Remote range and application switching using PLC compatible contact inputs
- History log for up to 100 time and date stamped events
Resistivity system accuracy of +/- 1.06% RMS - 24/7 expert technical and application support
| Document title | Document type | Document Date | Download |
|---|---|---|---|

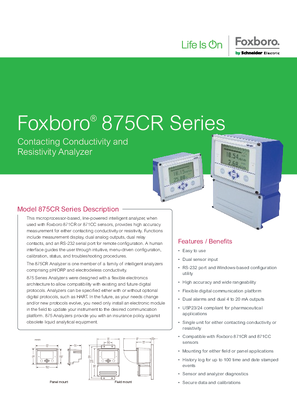

| Data Bulletin | 01/06/2004 |
 463.5 KB |
|
| Specification guide | 01/12/2006 |
1.3 MB |
|
| Technical leaflet | 01/10/2006 |
427.2 KB |
